Create links in Tractorscope table charts

Markdown Syntax for Links

To create a link in Markdown, use the following syntax:

This renders as:

Generating Markdown Links in SQL Queries

To dynamically generate Markdown-formatted links in your Tractorscope tables, you can use SQL string functions. For instance, in MySQL, you can concatenate the link text and URL using the CONCAT function:

SELECT
  CONCAT('[', link_text, '](', link_url, ')') AS markdown_link
FROM ...

SELECT
  CONCAT('[', link_text, '](', link_url, ')') AS markdown_link
FROM ...

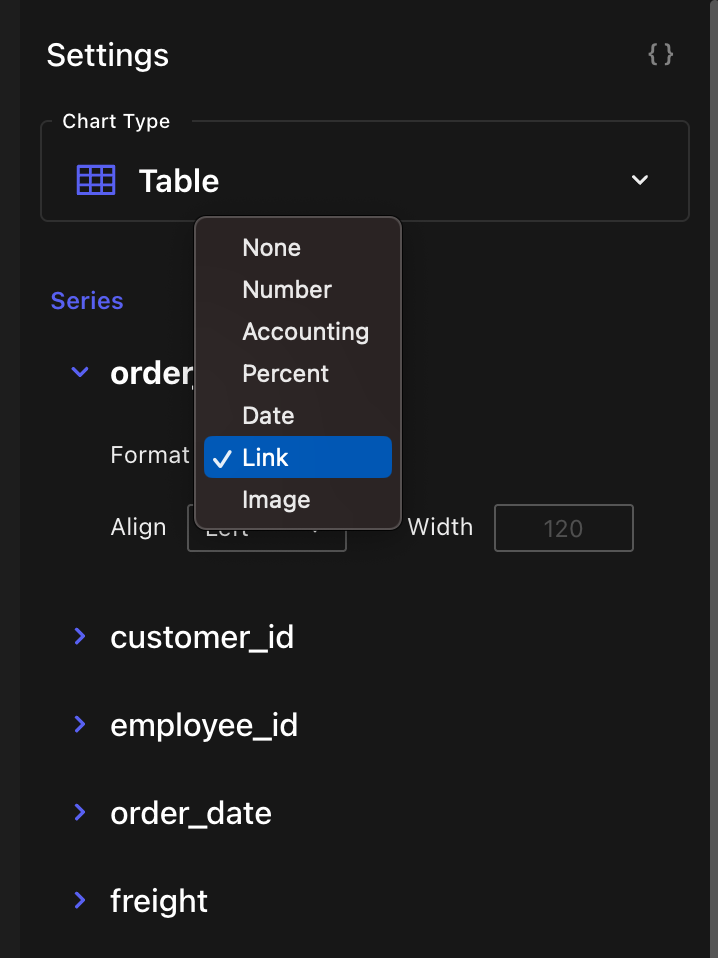

This query combines the link_text and link_url fields from your table into a single Markdown-formatted link. From the Series on the right, find your column and and set the Format to ‘Link’.

Tractorscope SQL query using Markdown link format for clickable table chart links

Example

Assuming you have a table named orders with columns order_id the following query will generate a Markdown link for each order:

SELECT
  CONCAT('[', order_id ,'](https://my-northwind-site.com/order/', order_id ,')') as order_link
  ...
FROM ...

SELECT
  CONCAT('[', order_id ,'](https://my-northwind-site.com/order/', order_id ,')') as order_link
  ...
FROM ...

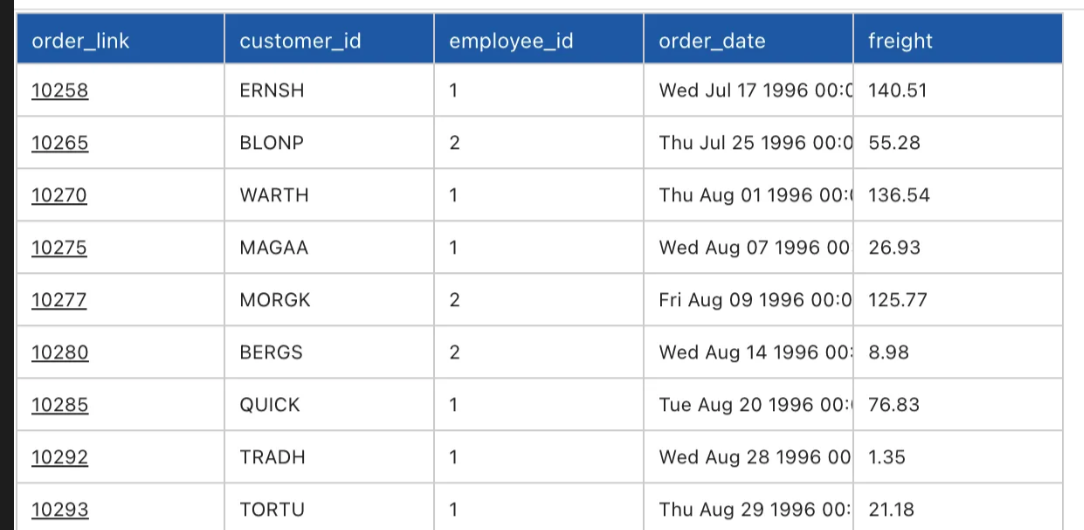

This will output:

Tractorscope table chart with clickable linked text rendered from SQL results
